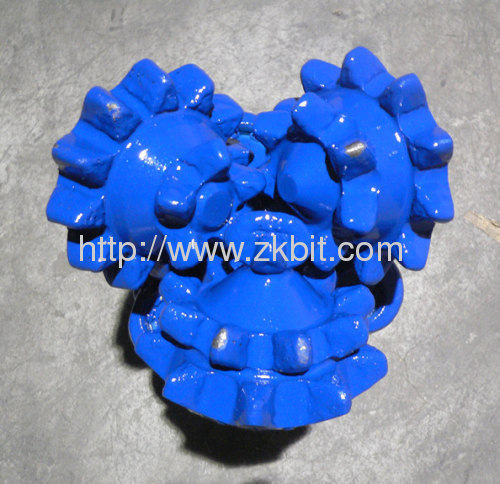

product name API kingdream brand 7 7-8''HA117G steel tooth Tricone Rock Bits

Tricone bit:
Main structure features
1.journal bearing. hardfaced head bearing surface.cone bearing inlaid with friction reducing alloy and then silver plated.the load capacity and seizure resistance of the bearing is greatly improved.
2.o-ring seal is made of the more wear resistance high saturated buna-N with the section and precissely designed sealing flange in the cone sealing area increased the reliability of the seal.
3.the bit bearing is ball which can be applied to high rotary speed drilling.
4.all rubber compensator is used which can provides the bearing system with good assurance of lubrication.
5. new type of grease that can sustain high temperature up to 250C is utilized.
6.high wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high touchiness in combination with optimized compact numbers and rows,the exposure height and special shaped compacts.
size: from 2-3/5"(60mm)---26"(660.4mm)

1. Soft formations(114-117)
These bits are designed to drill the softest formations such as soft shales,red beds, and clays, with high durability and maximum penetration rates.


API kingdream brand 7 7-8''HA117G steel tooth Tricone Rock Bits
